| Tempat asal: | Made In China |
| Nama merek: | Infinity Machine |
| Sertifikasi: | CE ISO |
| Nomor model: | ID6150 |
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | Negotiate |
| Kemasan rincian: | Clear sheet+sponge+wood carton |
| Waktu pengiriman: | 20-30 days after order confirmed |
| Syarat-syarat pembayaran: | TT PAYPAL Moneygram and so on |
| Menyediakan kemampuan: | 200 sets / month |
| Kesalahan ketinggian:: | ±1mm | Nama produk: | Mesin pengujian pukulan bola jatuh otomatis tiga sumbu |
|---|---|---|---|
| Rentang kecepatan sumbu Z:: | 1-200mm/s | Fitur:: | Peralatan ini menggunakan metode penyerapan vakum untuk menyerap bola baja, yang lebih akurat daripa |
| Kisaran kecepatan sumbu Y:: | 1~100mm/s | Rencana perjalanan sumbu X:: | 420mm |
| Kapasitas pabrik:: | 1200Ｗ | Kisaran kecepatan sumbu X:: | 1~100mm/s |

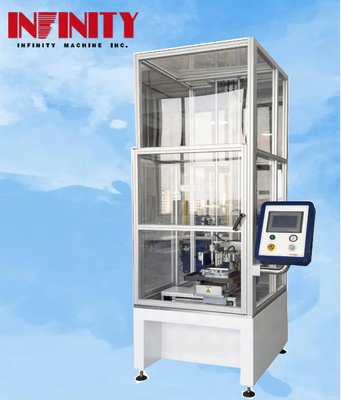

One of the key features of this machine is its X-axis itinerary of 420mm, which allows it to accommodate a wide range of test specimens. The equipment size of 1140×1200×2700mm makes it a compact and space-saving solution for laboratories, manufacturing facilities, and other testing environments.
The X-axis speed range of 1~100mm/s is another notable attribute of this Three-axis Automatic Drop Ball Machine. This range offers flexibility and versatility in conducting impact tests on different materials and products with varying impact resistance levels. This equipment is designed to cater to the testing needs of a wide range of industries, including automotive, aerospace, construction, and more.
The Three-axis Automatic Drop Ball-impact Test Machine is also equipped with a test height of 50-1200mm, which provides the user with the flexibility to test specimens of varying sizes. This feature makes it possible to test materials such as sheets, films, pipes, and more. The machine's user-friendly interface and controls make it easy to operate, and the test results are easily accessible, making it an efficient and reliable testing solution.
In summary, the Three-axis Automatic Drop Ball-impact Test Machine is a versatile, efficient, and reliable testing solution that is designed to cater to the needs of various industries. Its X-axis itinerary of 420mm, equipment size of 1140×1200×2700mm, X-axis speed range of 1~100mm/s, and the test height of 50-1200mm make it an ideal choice for testing a wide range of materials and products. Whether you are in research and development, quality control, or any other industry where impact testing is essential, this machine is a must-have for any lab or testing facility.
Device control interface:
| X-axis itinerary: | 420mm |
| Test height: | 50-1200mm |
| Plant capacity: | 1200Ｗ |
| Working power supply: | AC220V 2A 50Hz |
| Acrylic ball specification: | 160g Or As Specified |
| Y-axis velocity range: | 1~100mm/s |
| Weight of equipment: | About 530 Kg |
| Steel ball specifications: | 20g, 500g, Or As Specified |

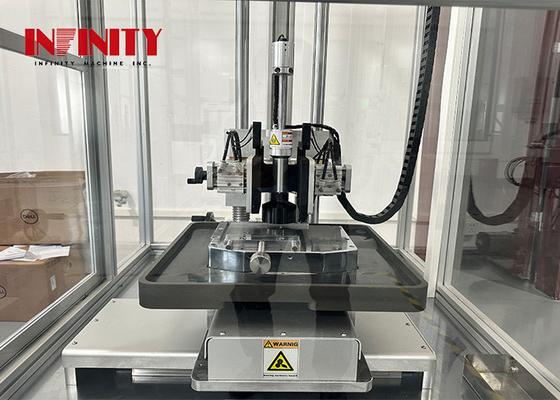

| Features: | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position. |
| Application: | The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products. |
Introducing the versatile and efficient Drop Ball-impact Tester from Infinity Machine, the ID6150 model. Made in China, this product is certified with CE and ISO, ensuring its quality and reliability. It has a minimum order quantity of 1 and a negotiable price, making it accessible to all potential customers.
The Drop Ball-impact Tester is designed for a wide range of product application occasions and scenarios. Its height error is minimal, with a precision of ±1mm. The equipment uses vacuum adsorption method to absorb steel balls, which is more accurate than the mechanical claw drop method. At the same time, with the integrated high-speed X-Y platform, it can be programmed to realize automatic multi-point cycle test and improve the test efficiency. The X, Y and Z axis are driven by Japan Panasonic servo motor, precision ball screw drive, low noise and durable use.
This product is suitable for global customers, with its language having simplified / English interface. The software operation interface is simple and easy to operate. The program has a designed anti-stay function to ensure the accuracy and safety of each test. Unique automatic reset and automatic pickup function, can realize unattended and automatic cycle test.
The Drop Ball-impact Tester is equipped with infrared laser function, which can accurately locate the position of the landing point and facilitate the tester to accurately determine the test position. The test formula is stored in the ROM of the system, which is simple and convenient to read and change the test position.
The whole machine adopts floor structure design, the operation panel can rotate, so that the operator closer to the test area, more convenient sample loading and unloading. The equipment provides the perfect fault detection mechanism of the operation state, and provides the corresponding error information prompt, and conducts real-time detection and processing of servo failure, sensor fault, X, Y and Z axis limit fault, so as to maximize the protection of personal and equipment safety.
The Drop Ball-impact Tester has a plant capacity of 1200W with a working power supply of AC220V 2A 50Hz. It has a supply ability of 200 sets per month and delivery time of 20-30 days after order confirmation. The packaging details include clear sheet+sponge+wood carton to ensure the product's safety during transportation.
Invest in the Drop Ball-impact Tester from Infinity Machine today and experience the convenience and efficiency of this top-quality product.
Action flow chart:
Brand Name: Infinity Machine
Model Number: ID6150
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Test height: 50-1200mm
The Y-axis velocity range: 1~100mm/s
X-axis itinerary: 420mm
Application: The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products.
Keywords: Drop Ball-impact Tester, Drop Ball-impact Tester, Three-axis Automatic Drop Ball Machine
Our Impact Testing Machine product comes with comprehensive technical support and services to ensure that our customers achieve optimal performance and efficiency. These services include:
Our team of experienced technicians and engineers are dedicated to providing prompt and effective solutions to ensure that our customers' testing needs are met with the highest level of quality and satisfaction.
Product Packaging:
The Impact Testing Machine will be packed in a sturdy cardboard box with foam padding to ensure safe transportation. The machine will be disassembled and packed in individual pieces to minimize any damage during shipping. The package will include an instruction manual and necessary tools for assembly.
Shipping:
The Impact Testing Machine will be shipped via a reputable courier service such as DHL or UPS. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided upon checkout. Customers are responsible for any customs or import duties that may apply.
Q: What is the brand name of the impact testing machine?
A: The brand name of the impact testing machine is Infinity Machine.
Q: What is the model number of the impact testing machine?
A: The model number of the impact testing machine is ID6150.
Q: Where is the impact testing machine made?
A: The impact testing machine is made in China.
Q: What certifications does the impact testing machine have?
A: The impact testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for the impact testing machine?
A: The minimum order quantity for the impact testing machine is 1.
Q: What is the price of the impact testing machine?
A: The price of the impact testing machine is negotiable.
Q: What are the packaging details for the impact testing machine?
A: The packaging details for the impact testing machine are clear sheet+sponge+wood carton.
Q: What is the delivery time for the impact testing machine?
A: The delivery time for the impact testing machine is 20-30 days after order confirmed.
Q: What are the payment terms for the impact testing machine?
A: The payment terms for the impact testing machine are TT, PayPal, Moneygram, and so on.
Q: What is the supply ability for the impact testing machine?
A: The supply ability for the impact testing machine is 200 sets per month.
