Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor

Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor

  • Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor
  • Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor
Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor
Detail produk:
Tempat asal: BUATAN CHINA
Nama merek: Infinity Machine
Sertifikasi: CE, ISO
Model Number: RS-8330C-5
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontak
Detil Deskripsi produk
Test amount: 5 Sets Test load: 100gf-2000gf (or specified)
Test speed: 1-60 times/min or 30-240 times/min Adjustable table height: 0-100mm
Dimension: 900x460x1100mm Weight: 200kg
Cahaya Tinggi:

force testing machine

,

button pull test machine



Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor



Model: RS-8330C-5



Purpose:



It is applied for keystroke life-span test of computer mouse, telephone, mobile phone in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life-Span testing.



Features:



Every testing station is independent control & working: times/conduct/on/off/speed &etc.



Every testing station can test 3 keys at one time, pressure is adjustable and with calibrating system to control the hitting force.



Adopt Japan Panasonic motor driver, with low noise and long testing life time.



Specification:



 Model  RS-8330C-5
 Test amount  5 Sets
 Test load  100gf~2000gf (or specified)
 Test speed  1~60times/min or 30~240times/min (or specified)
 Test cycle  1~999999times (cycle)
 Adjustable table height  0~100mm
 Dimension (WxDxH)  900x460x1100mm
 Weight  200 kg
 Power Supply  AC220V 50Hz 5A or specified by user



Picture:

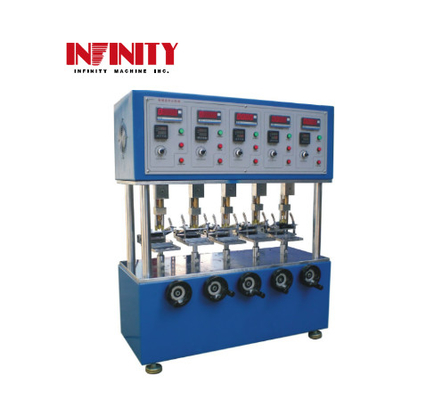

Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor 0

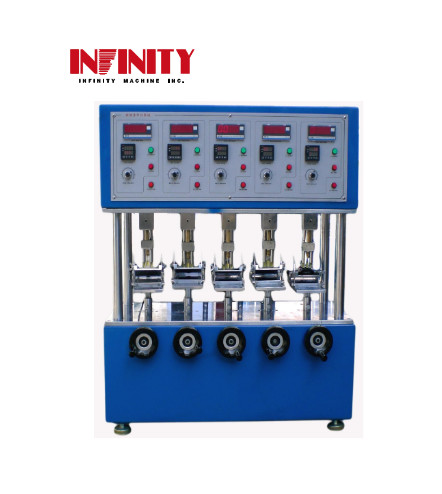

Remote Control Keystroke Tester Button Lifetime Testing with Panasonic Motor 1
