Rumah ProdukPenguji Tombol Keyboard

Electrical Force Measuring Instruments for Computer Keyboard Excel Report

Electrical Force Measuring Instruments for Computer Keyboard Excel Report

  • Electrical Force Measuring Instruments for Computer Keyboard Excel Report
  • Electrical Force Measuring Instruments for Computer Keyboard Excel Report
Electrical Force Measuring Instruments for Computer Keyboard Excel Report
Detail produk:
Tempat asal: BUATAN CHINA
Nama merek: Infinity Machine
Sertifikasi: CE, ISO
Model Number: RS-6900B
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontak
Detil Deskripsi produk
Capacity: 500gf(5N), 1000g(10N), 2000g(20N) Effective testing range: 0.2%~100%F.S
Display: Fp,Fc,Fm,Fr,Click%,The load force Max testing range: 50mm
Range of test speed: 25mm/min~300mm/min Via USB cable: YES
Dimension: 320x220x380mm Weight: 13kg
Cahaya Tinggi:

force testing machine

,

button pull test machine



Electrical Force Measuring Instruments for Computer Keyboard Excel Report



Model: RS-6900B



Purpose:



Keys of computer

keypads of mobile phone

Keypads of Calculator, telephone, remote control

Conducting rubber buttons

Metal, spring buttons

Buttons for the other electronic products

And all kinds of touch switch



Application:



Can display the FP,FC,FM,FR, Rate of clicking, and the force value after testing.

The stable speed of this tester has enhanced the precision of repeatability and that avoid the unstable problem by the hand loading testing.



Can set the testing speed on the control panel: the speed adjustable range is 10~300mm/min, And can display the value of current position change. To press the button of TEST, the testing will start, and it will automatically come back to the original position after finishing the testing, the meters have the auto-reset function, that can help the testing efficiency.



This tester has high capacity, high intelligence, the meter can auto save the data up to 800 sets, and can auto judge the pass or failure according to the setting after the testing finish.



Can use USB to export to the EXCEL to create the report



This tester is suitable for the on-site testing for the quality control and for the engineering reference.



Specification:



 Model  RS-6900B
 Capacity (optional)  500gf(5N), 1000g(10N), 2000g(20N)
 Unit (switchable)  N, Kgf, gf, Lbf
 Resolution  1/10,000
 Load accuracy  ±0.2%F.S
 Effective testing range  0.2%~100%F.S
 Allowable Overload  150%
 Display  Fp,Fc,Fm,Fr,Click%,The load force
 Max testing range  50mm
 Range of test speed  25mm/min~300mm/min
 Accuracy  ±1%
 Via USB cable  Yes
 Dimension (WxDxH)  320x220x380mm
 Weight  13kg



Picture:

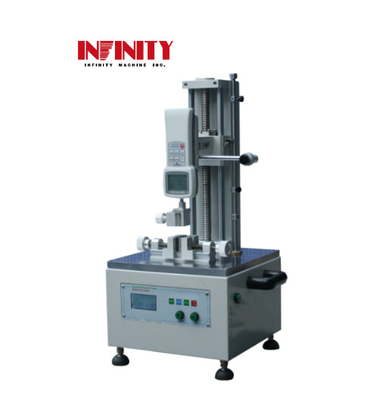

Electrical Force Measuring Instruments for Computer Keyboard Excel Report 0
