Computerised LCD Touch Panel Tester for Rolling Click Crossed Test

Computerised LCD Touch Panel Tester for Rolling Click Crossed Test

    • Computerised LCD Touch Panel Tester for Rolling Click Crossed Test
  • Computerised LCD Touch Panel Tester for Rolling Click Crossed Test

    Detail produk:

    Tempat asal: BUATAN CHINA
    Nama merek: Infinity Machine
    Sertifikasi: CE, ISO
    Model Number: RS-5610C

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1 set
    Harga: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Kontak
    Detil Deskripsi produk
    Controller: Computer Control X axis movement range: 0~150mm or 0~300 (specified before order)
    Y axis movement range: 0~150mm or 0~300 (specified before order) Z-axis click cylinder: 0~20mm
    Load: 20g, 30g, 150g, 250g Dimension: 750x750x660mm
    Weight: About 120kg Power source: AC220V 50Hz 5A or specified by user
    Cahaya Tinggi:

    lcd screen tester

    ,

    click speed tester

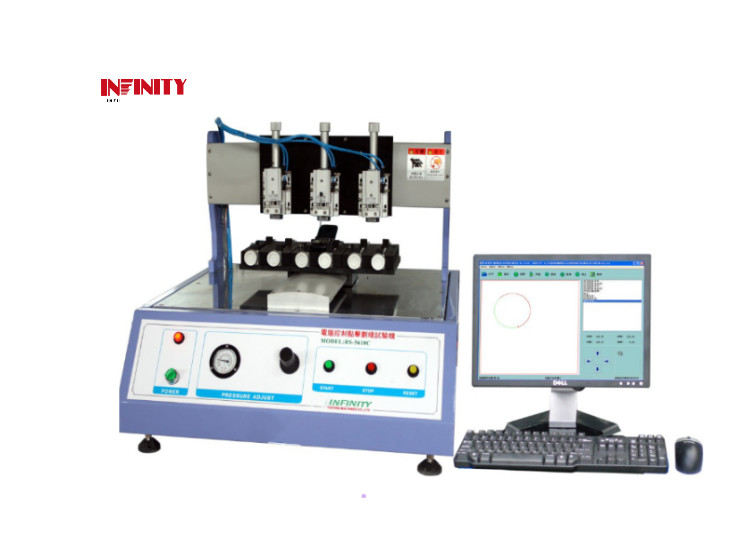

    Computerised LCD Touch Panel Tester for Rolling Click Crossed Test



    Model: RS-5610C



    Purpose:



    This machine is used for pressing rolling, clicking, Drawing test for small LCD, touching screen, such as mobile phone.



    Test Item:



    Touching pen clicking test: 0-15N(or set).

    Touching pen drawing test: drawing line on touching screen as setting.;

    Mobile surface abrasion test: with alcohol / eraser as testing assistance.



    Specification:



     Model  RS-5610C ( Computer Control )
     X-axis Moving range  0~150mm or 0~300 (specified before order)
     Y-axis Moving range  0~150mm or 0~300 (specified before order)
     Z-axis click cylinder  0~20mm
     Positioning accuracy  0.05mm
     Moving speed  0~200mm/sec
     Pressure range  80~1500gf (or specified)
     Load  20g, 30g, 150g, 250g
     Air pressure  ≥0.5MPa
     Dimension (WxDxH)  750x750x660mm
     Weight  About 120kg
     Power supply  AC220V 50Hz 5A or specified by user



    Fixture:



    Computerised LCD Touch Panel Tester for Rolling Click Crossed Test 0





    Test reports:



    Computerised LCD Touch Panel Tester for Rolling Click Crossed Test 1
