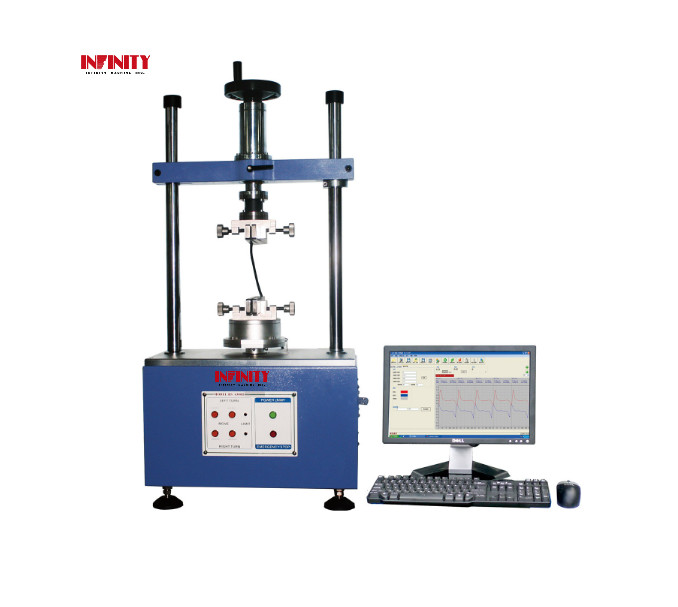

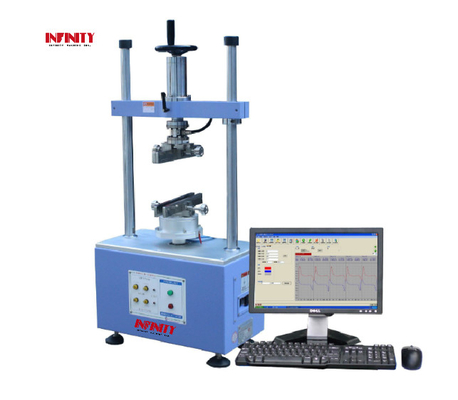

Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m

Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m

  • Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m
  • Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m
Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m
Detail produk:
Tempat asal: BUATAN CHINA
Nama merek: Infinity Machine
Sertifikasi: CE, ISO
Model Number: RS-6300D-A
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontak
Detil Deskripsi produk
Testing range: W450x D no-limit x H300mm Max testing torsion: 2N.m,5N.m,10N.m(optional )
Min. display torsion: 0.01N.m Rotation angle: No limit
Testing speed range: 1~72000/min Size: W420×D320×H1150mm
Weight: 65kg Power supply: 1∮,AC220V,5A or specify by customer
Cahaya Tinggi:

torque testing machine

,

torsion spring tester



Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m



Model: RS-6300D-A



Application:



This torsion tester is suitable for the torsion testing for all kinds of electronic products and the hinges. Can measure the torsion of positive rotation and reverse rotation, and have the software to create the curves of testing, and can record the testing data, the curves.



Specialties:



1. The testing conditions are set by computer (the angle testing range, the original point of stroke, testing speed, testing cycles, the pause time,

    to hold the time for the testing and so on)

2. Can print and save the testing data and curves (Torsion vs angle, Torsion damping curve)

3. The title, products spec, testing date, operator, file No in the testing report are editable.

4. The testing chart is Microsoft Access editing format, input the testing data automatically and can save or print.

5. It can automatically judge the pass or failure for the testing according to the set upper and lower limit value, and then create the current testing

    data, such as the Max torsion, Min torsion, Ave. value, ETC, and create the corresponding curves.

6. The torsion damping curve and report: to display torsion value changing vs the testing cycles increase.

7. To adopt the Panasonic servo motor for the driving, has the 2500R high pulse encoder, can make sure the right location precisely, and low

    noise ,higher torque, can satisfy long time running .

8. Adopt the special auto-centering device, can auto correct and reduce the tolerance when the specimen isn’t installing at the centre of the axis

    in the testing.



Specification:



 The testing range  W450x D no-limit x H300mm
 Max testing torsion  2N.m,5N.m,10N.m(optional )
 Min. display torsion  0.01N.m
 Min. Angle display  0.010
 Rotation angle  No limit
 Testing speed range  1~72000/min(Meet Amazon requirement :1~2sec reach 1.5N.m)
 Size  W420×D320×H1150mm
 Weight  65kg
 Power supply  1∮,AC220V,5A or specify by customer



Torsion Testing Machine 3D Drawing:



Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m 0

Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m 1



Test report:



Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m 2





1. Operation language: Chinese, English.

2. Force unit: kgf.cm, N.m, Lbf.in, N.mm can be switched,

3. Testing : Allow to call, modify, save. Every test can save as the new doc name, can save every data automatically to avoid the lost of the data by

    power-cutting, can set the forward and backward rotation speed, testing angle, testing cycles and time holding, upper and lower limit setting.



Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m 3



The testing data table(report) can be created automatically, it includes the max value, Min value, Ave. value, auto-judge for pass or failure. the report can be converted to be PDF or EXCEL format.





Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m 4



The curves can be printed, and support to optional printing by selecting any curves for printing. And can be converted to be PDF or EXCEL format.



Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m 5



Can create the life-span damping curve, the curve can be converted to be PDF or EXCEL format.
