| Tempat asal: | BUATAN CHINA |
| Nama merek: | Infinity Machine |
| Sertifikasi: | CE, ISO |
| Model Number: | RS-6910 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Harga: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Headphone specimen: | 6pcs (synchronic testing) | Driver mode: | AC servo motor |
|---|---|---|---|
| Expand stroke: | 100~300mm (Touchable screen set) | Test speed range: | 10～80times/min |
| Counter: | 1~999999 times available | Machine dimension: | W900 x D900 x H 600mm |
| Machine weight: | 125kg | Power: | AC220V 50Hz 5A or specified by user |
| Cahaya Tinggi: | phase rotation tester,electronic tester |
||

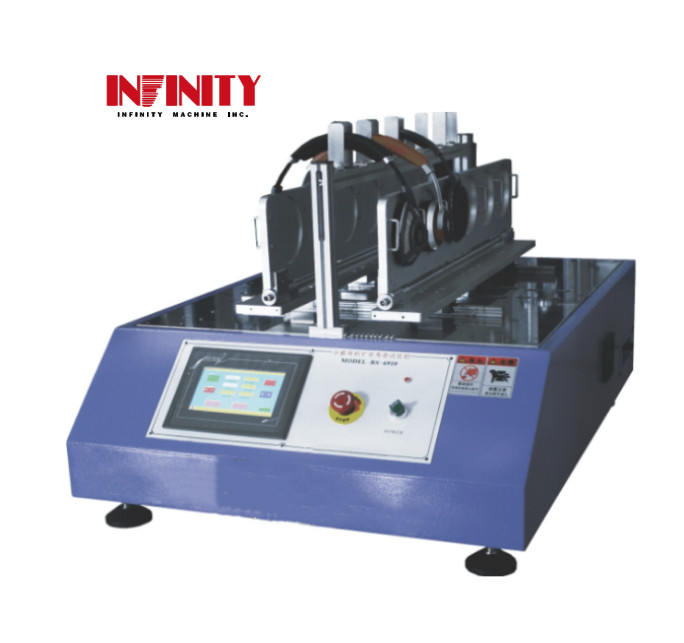

Mitsubishi Electronic Product Tester / Extension Headphones Tester PLC Control
Model: RS-6910
Purpose:
Apply for headphone do extension (flexible) life test. Clamping the headphone on left/right fixture, drawing together and release together, the testing stroke can be adjustable, after mana times, check the headphone band damage status.
Character:
1; adopt MGCS TFT7 true-color LCD + Mitsubishi PLC controller, can set pull up stroke, test speed, test times;
2; adopt Japan Panasonic servo motor driver, high speed & low noise, working stable, quality reliable;
3; can test 6sets for one time, high efficient, pull up stroke can be adjustable (set on touchable screen), can use Velcro and positioning fixture to fit
the headphone.
Specification:
| Headphone specimen | 6pcs (synchronic testing) |
| Driver mode | AC servo motor |
| Expand stroke | 100~300mm (Touchable screen set) |
| Test speed range | 10～80times/min |
| Counter | touch screen display, 1~999999 times available |
| Machine dimension | W900 x D900 x H 600mm |
| Machine weight | 125kg |
| Power | AC220V 50Hz 5A or specified by user |
