| Tempat asal: | BUATAN CHINA |
| Nama merek: | Infinity Machine |
| Sertifikasi: | CE, ISO |
| Model Number: | RS-5600Z |
| Minimum Order Quantity: | 1 set |
|---|---|
| Harga: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Standard: | GB/T7706 | Abrasion load: | 20±0.2N |
|---|---|---|---|
| Abrasion speed: | 43cpm | Abrasion area: | 155mmx50mm |
| Sample size: | 230mmx50mm | Dimension: | 300x300x400mm |
| Weight: | 20kg | Power supply: | AC220V 50Hz or specified by user |
| Cahaya Tinggi: | martindale abrasion tester,rotary abrasion tester |
||

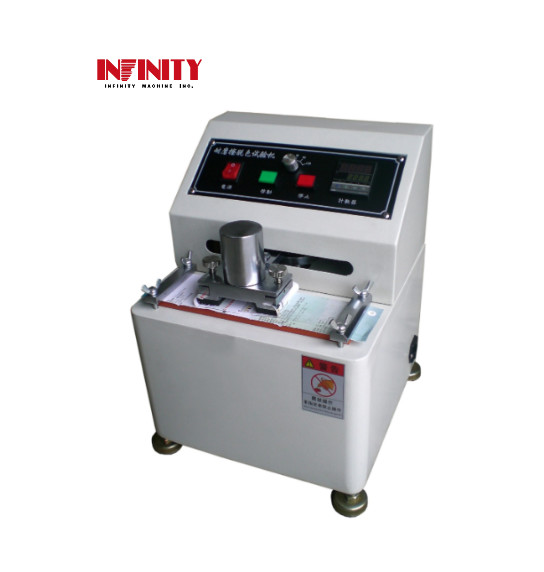

Printer Ink Test Discoloration Ink Rub Tester Computerized Big Capability
Model: RS-5600Z
Application:
Apply for printing parts do coating abrasion resistance test (Ink discoloration testing machine), can be used for all kind of coating & printing parts and analysis the data for abrasion capability, ink discoloration, PS version printing capability and coating thickness, etc.
Test theory: load the testing sample with specific load at specific speed do abrasion test, after test, check the density or coating thickness to check the ink or coating surface.
Standard:
JIS K5701, GB/T7706, ASTM D5264, TAPPI T830
Specification:
| Model | RS-5600Z | |
| Standard | GB/T7706 | ASTM D5264 TAPPI T830 |
| Abrasion load | 20±0.2N | 8.9N(21b), 17.8N(41b) |
| Abrasion speed | 43cpm | 21,43,85,106cpm |
| Abrasion area(WxD) | 155mmx50mm | 100mmx50mm |
| Sample size(WxD) | 230mmx50mm | 180mmx50mm |
| Abrasion times | 0~999,999times ( can set ) | |
| Dimension (WxDxH) | 300x300x400mm | |
| Weight | 20kg | |
| Power | AC220V 50Hz or specified by user | |
