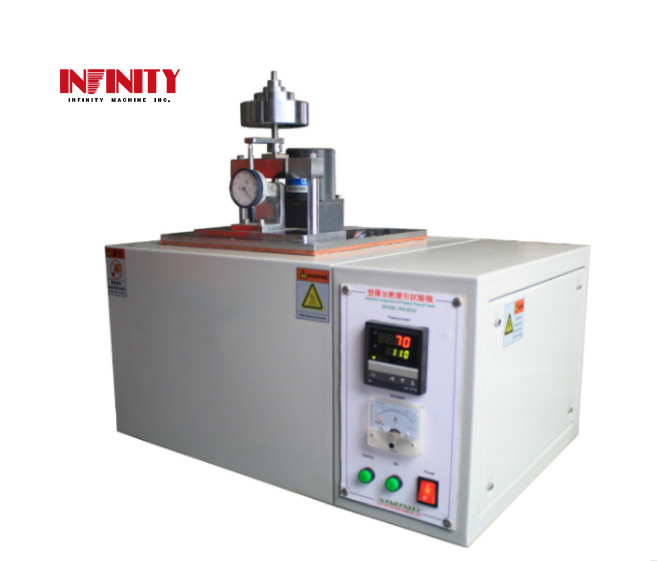

ASTM D648 Plastic Testing Machines Heating Deformation Resistance Test

ASTM D648 Plastic Testing Machines Heating Deformation Resistance Test

  • ASTM D648 Plastic Testing Machines Heating Deformation Resistance Test
ASTM D648 Plastic Testing Machines Heating Deformation Resistance Test
Detail produk:
Tempat asal: BUATAN CHINA
Nama merek: Infinity Machine
Sertifikasi: CE, ISO
Model Number: RS-8233
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontak
Detil Deskripsi produk
Temp.Control: RT~300℃ Specimen Size: (L)127mm x (W)13mm x (H)13mm
Heat conduction oil: glycerin, estersil oil or dielectric oil Churn Motor: 25W
Dial indicator: 0.01~10mm Weight: 35 kg
Dimension: 550x400x600mm Power supply: AC220V 50Hz 2Kw or specified by user
Cahaya Tinggi:

plastic testing equipments

,

plastic testing instruments



ASTM D648 Plastic Testing Machines Heating Deformation Resistance Test



Model: RS-8233



Application:



 Apply for plastic heating deformation resistance testing, put the testing sample on two supporting point in  testing machine, forcing the heating rod

 and rising temperature with 2℃/min. when the center of the  testing sample sinking to a specific position (plastic material 0.26mm, hard rubber

 material 0.25~ 0.33mm), the temperature will be the deformation temperature. Also can do material flexural strength test  under normal condition

 (hard plastic 23°).



Standard: ASTM D648-2007, CNS-2229, 4393



Specification:



 Model  RS-8233
 Temp.Control  RT~300℃
 Specimen Size  (L)127mm x (W)13(1/2in)mm x (H)13 mm(1/2in)
 Heat conduction oil  glycerin, estersil oil or dielectric oil
 Span Values  Space 101.6± 0.5mm, R3mm (method A), space 100  ±0.5mm,R3mm(method B)
 Weight  20g,30 g,50g,100g,200g,300g,500g,2000g
 Churn Motor  25W
 Dial indicator  0.01~10mm
 Dimension (WxDxH)  550x400x600mm
 Weight  35 kg
 Power supply  AC220V 50Hz 2Kw or specified by user
