| Tempat asal: | BUATAN CHINA |
| Nama merek: | Infinity Machine |
| Sertifikasi: | CE, ISO |
| Model Number: | RS-6600 / RS-6600G |
| Minimum Order Quantity: | 1 set |
|---|---|
| Harga: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Test adjust range: | X-axis:0~10mm, Y-axis:0~45mm, Z-axis: 0~45mm | Test speed: | 5~40times /min |
|---|---|---|---|
| Clamp range: | W100xH35xL120mm | Dimension: | 440x600x500mm |
| Weight: | 45kg | Power supply: | AC220V 50Hz 3A or Specified by user |
| Cahaya Tinggi: | phase rotation tester,electronic tester |
||

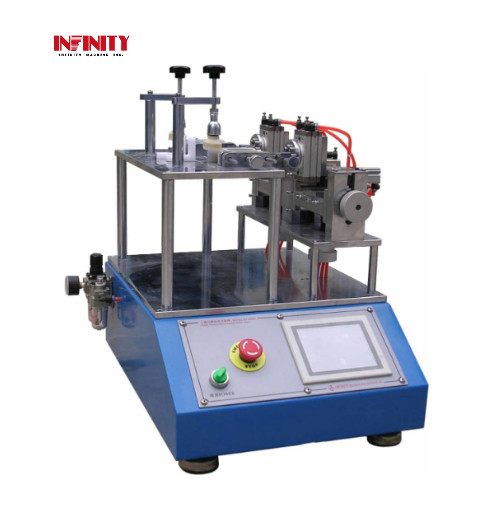

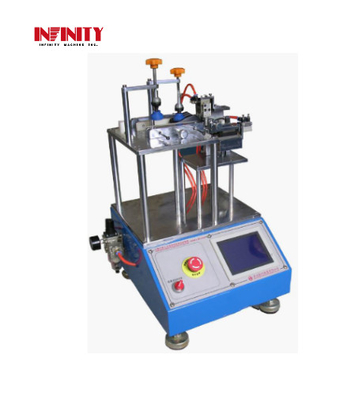

Mobile Phone Accessories Electronic Tester Insert Drawing Out 2 Stations
Model: RS-6600 / RS-6600G
Application:
Apply for the insert and drawing test of all kinds of connectors like network card, Mobile charger & headset, touchpen, CD/MP3, USB, to check the connector quality by N times testing.
Feature:
Adopt touching screen and PLC control, English interface, easy operation and long life time.
With X-Y axis center adjusting device, make sure the precision of testing.
Can take insert & drawing testing and the rotating testing at the same time.
Specification:
| Model | RS-6600 | RS-6600G |
| Test item | 2 set mobile phone charger insert & drawing test | 2 set of headset of mobile phone insert & drawing test |
| Test adjust range | X-axis:0~10mm, Y-axis:0~45mm, Z-axis: 0~45mm | |
| Test speed | 5~40times /min | |
| Clamp range | W100xH35xL120mm | |
| Test cycle setting | 1~999999times (can set) | |
| Dimension (WxDxH) | 440x600x500mm | |
| Weight | 45kg | |
| Power supply | AC220V 50Hz 3A or Specified by user | |
Fixture:
