JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height

JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height

    • JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height
  • JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height

    Detail produk:

    Tempat asal: BUATAN CHINA
    Nama merek: Infinity Machine
    Sertifikasi: CE, ISO
    Model Number: RS-8220A-A3

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1 set
    Harga: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Kontak
    Detil Deskripsi produk
    Max. height: 600~1400mm Control way of ropped ball: DC electromagnetic control
    Steel ball weight: 112g, 198g, 225g, 357g, 533g, 1042g, 2280g Dimension: W720 x D760 x H2000mm
    Weight: 210Kg Power supply: AC220V 50/60Hz 1A
    Cahaya Tinggi:

    impact resistance tester

    ,

    ball drop machine



    JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height



    Model: RS-8220A-A3



    Purpose:



    This tester is suitable for testing the fastness of plastic, ceramic, acrylic, glass fiber and test coating, etc.



    Features:



    It adopts DC electromagnet control mode, put the steel ball under the electromagnetic chuck and steel ball is adsorbed automatically; press Drop button, the chuck immediately release steel ball, then steel ball will do free-fall testing to impact specimen surface. Drop height can be adjusted up and down, and with a scale to view the height. And specimen drop height can be known by Infrared mark lamp of impact point.



    Key parts of this machine are all quality products with reliable performance, and there are various drop accessories, making your test accurate and effective.



    Specification:



     Model  RS-8220A-A3
     Max. height  600~1400mm
     Control way of ropped ball  DC electromagnetic control
     Steel ball weight  JIS Standard 112g, 198g, 225g, 357g, 533g, 1042g, 2280g (Standard)
     Standard GB/T14485: 454g, 761g, 1053g, 1735g (Optional)
     Dimension ( WxDxH )  W720 x D760 x H2000mm
     Weight  210Kg
     Power  AC220V 50/60Hz 1A or specified by user



    Picture:

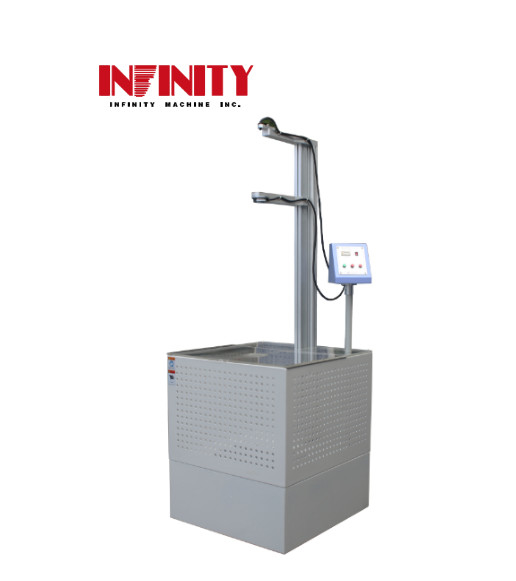

    JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height 0



    JIS Standard Plastic Testing Equipment Impact Fastness Test 600 - 1400 mm Height 1
