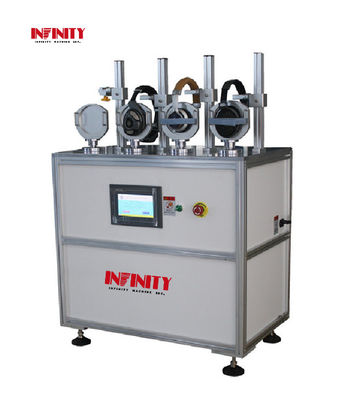

Torsion Fatigue Testing Machine Headset Life Span Test for Manufacturer

Torsion Fatigue Testing Machine Headset Life Span Test for Manufacturer

  • Torsion Fatigue Testing Machine Headset Life Span Test for Manufacturer
Torsion Fatigue Testing Machine Headset Life Span Test for Manufacturer
Detail produk:
Tempat asal: BUATAN CHINA
Nama merek: Infinity Machine
Sertifikasi: CE, ISO
Model Number: RS-8106C
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set
Harga: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontak
Detil Deskripsi produk
Driver mode: AC servo motor Test stroke: 100~300mm (settable)
Test speed: 10~80 cycles/min Dimension: W900xD900xH600mm
Weight: About 125kg Power supply: AC220V 3A or specified
Cahaya Tinggi:

torque testing machine

,

torsion spring tester



Torsion Fatigue Testing Machine Headset Life Span Test for Manufacturer



Model: RS-8106C



Purpose:



This test equipment is suitable for headphone rotating shaft to do torsion life test. Test method is: fix one end of the earphone on the torsion clamp and fix headband on the support frame, then set test angle and rotating speed. After certain test cycles (can be set from 0-999999), take down the headphone to check its rotating shaft property.



Feature:



It adopts TFT seven-inch color LCD touch screen and Mitsubishi PLC for motion control, can set rotatory angle, test speed, test cycles and test interval time.



It adopts Panasonic servo motor for driving, which has high speed, low noise, stable operation and performance, reliable and durable quality.



It can simultaneously test 6 headphones, and rotation angle is accurate and adjustable.



Specification:



 Model  RS-8106C
 Driver mode  AC servo motor
 Test angle  5~360° (settable)
 Test speed  10~60 cycles/min
 Test cycle  1~999999 cycles (settable)
 Dimension  About W850 x D360 x H 1200mm
 Weight  About 125kg
 Power supply  AC220V 3A or specified
