Tempat asal: | BUATAN CHINA |
Nama merek: | Infinity Machine |
Sertifikasi: | CE, ISO |
Model Number: | RS-8321 |
Minimum Order Quantity: | 1 set |
---|---|
Harga: | Negotiable |
Packaging Details: | Standard export wooden case with operation manual and video inside. |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets per month |
Specimen size: | (L) 6 "X (W) 1" X (D), sole 0.25 ", rubber rubber1 / 2" | Test sample quantity: | 6 PCS or 12 PCS |
---|---|---|---|
Flexing Angle: | 90 °± 2 ° | Test speed: | 100 cpm ± 5 cpm |
Motor: | 1 / 4 HP | Dimension: | 620x520x550mm |
Weight: | 85kg | Power supply: | AC220V 3A or specified by user |
Cahaya Tinggi: | bend test equipment,cable testing machine |

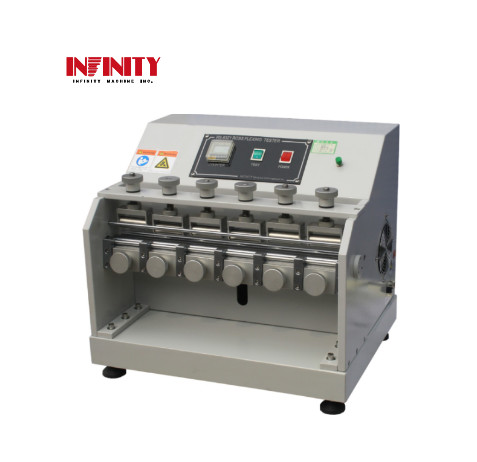

Bending Rubber Testing Equipment ASTM-D1052 12 Stations Electronic
Model: RS-8321
Purpose:
This tester is for the right angle bending testing for the rubber goods, sole, PU material ETC, After doing the bending, to see degree of the damping, damage or crack for the goods.
Standard:
ASTM-D1052,ISO-5423,4643,HB-T2411,SATRA TM 60
Specification:
Model | RS-8321 |
Specimen size | (L) 6 "X (W) 1" X (D), sole 0.25 ", rubber rubber1 / 2" |
Test sample quantity | 6 PCS or 12 PCS |
Counter | LCD 0 ~ 999,999 (electronic style) |
Flexing Angle | 90 °± 2 ° |
Test speed | 100 cpm ± 5 cpm |
Motor | 1 / 4 HP |
Dimension (WxDxH) | 620x520x550mm |
Weight | 85kg |
Power | AC220V 3A or specified by user |
