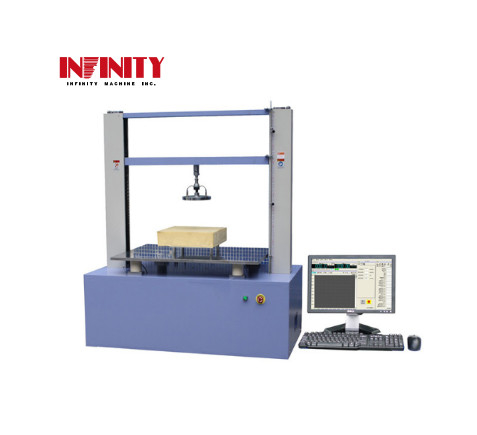

Polyfoam Compressive Strength Testing Machine Hardness Test Programmable

Polyfoam Compressive Strength Testing Machine Hardness Test Programmable

  • Polyfoam Compressive Strength Testing Machine Hardness Test Programmable
Polyfoam Compressive Strength Testing Machine Hardness Test Programmable
Detail produk:
Tempat asal: BUATAN CHINA
Nama merek: Infinity Machine
Sertifikasi: CE, ISO
Model Number: RS-8000P
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1
Harga: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontak
Detil Deskripsi produk
Capacity: 4KN Stroke: 400mm
Effective width: 1000mm Motor: AC servo Motor
Software: Special control software Weight: 550 Kg
Dimension: 1400x750x1650mm Power Supply: AC220V 10A or specified by user
Cahaya Tinggi:

Universal tes mesin

,

compression test equipment



Polyfoam Compressive Strength Testing Machine Hardness Test Programmable



Model: RS-8000P



Application:



It is suitable for foam (foamed plastic) or auto seat sponge to do compression and fatigue test; it is also suitable for foamed plastic hardness (indentation method) test. It adopts programmable control software and servo motor drive, satisfying A, B and C three test methods stipulated by GB/T10807-2006, and it can output dedicated report according to the standard.



Standard:



GB/T10807-2006 “flexible foam polymeric material hardness test (compression method)”

ISO 2439: 1997,ASTM D3674, JISK6400-2004



Features:



1. It adopts 4 high precision load cells to test load, which is more accurate.

2. It adopts special sensor to automatically align zero, which is better in repeatability.

3. Test space is as big as 1000750mm, satisfying finished product test on auto seat.

4. Random delivery for various foam test clamps, satisfying requirements of all kinds of tests.

5. It has dedicated testing software, satisfying testing requirement of CI/lag loss ratio and automatically completing the whole testing process after aligning zero.



Specification:



 Model  RS-8000P
 Capacity (optional)  4KN ( 4x1000N or specified by user )
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
 Load resolution  1/500,000
 Load accuracy  ±0.5%
 Stroke (exclude the grips)  400mm or specified by user
 Effective width  1000mm
 Test speed  0.001~600mm/min
 Speed accuracy  ±0.5%
 Stroke resolution  0.001mm
 Motor  AC servo Motor
 Software  Special control software
 Load range  Rangless
 Transmission rod  High accuracy ball screw
 Main unit dimension (WxDxH)  1400x750x1650mm
 Main unit weight  550 Kg
 Power supply  AC220V 10A or specified by user



Grip:
