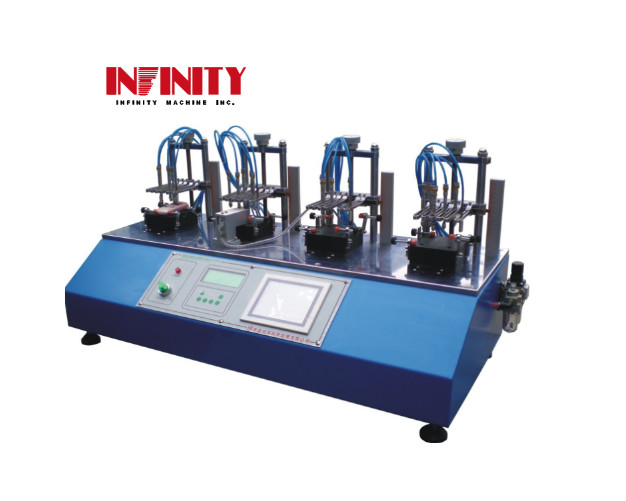

Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller

Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller

    • Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller
  • Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller

    Detail produk:

    Tempat asal: BUATAN CHINA
    Nama merek: Infinity Machine
    Sertifikasi: CE, ISO
    Model Number: RS-8330A-4

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1 set
    Harga: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Kontak
    Detil Deskripsi produk
    Cylinder stroke: 0~10mm Cylinder cycle time: 0.3~9.9sec
    Test speed: 10~60times/min available Counter: 0~999,999 adjustable
    Size: W1150xD400xH570mm Weight: 110kg
    Air source: ≧0.5MPa Power supply: 1∮AC220V 5A
    Cahaya Tinggi:

    force testing machine

    ,

    button pull test machine



    Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller



    Model: RS-8330A-8B



    Application:



    Apply for keystoke impact endurance test for mobile, telephone, car entertainment devices, PDA, Bluetooth/ earphone, Automobile TV remote controller, MP3/CD and so on, to check the product’s life-time.



    Standard:



    IEC60068-2-68; YD/T1539-2006: Mobile handsets reliability technical requirements and test methods



    Features:



    ■ Executing component are high quality; adopt Japan SMC electromagnetic valve & SMC single driving cylinder

    Adopt Mitsubishi touch LCD and PLC program controller; Can satisfy impact and sorting test

    ■ Simulations test; can do front & side load, the load space & pressure value can be adjustable, to satisfy the practical impact circumstance.

    ■ Testing head space and position can be adjustable; Testing head can move up and down, left and right.

    ■ 4 stations work separately without any interference each other; A,B,C,D,4 locations work separately(sorting test, Simultaneously test ), no

       interference, can do test at 1 station alone or 4 stations at the same time.

    ■ The max. test head can be 20pcs; total for 20pcs, including 6mm cylinder:15pcs, 12mm cylinder: 5pcs. test air pressure: 150~1500gf(6mm

       cylinder),500~5000gf(12mm cylinder), satisfy multi-keystoke testing demands, improve testing efficient.

    ■ Accurate air pressure control; Adopt precision air valve (multi-race valve) with professional measurement device to adjust the pressure,

       with high accurate air pressure control, can actually reflect the keystone’s fatigue status.



    Specification:



     Keystones tested Q’TY available  20pcs
     Test heads Q’TY  20pcs (6mm cylinder for 15pcs,12mm cylinder for 5pcs)
     Heads compress  150~1500gf(6mm cylinder),500~5000gf(12mm cylinder)
     Cylinder stroke  0~10mm
     Cylinder cycle time  0.3~9.9sec
     Test speed  10~60times/min available (120times/min---synchronously)
     Counter  0~999,999 available
     Size  W1150xD400xH570mm
     Weight  110kg
     Air source  ≧0.5MPa
     Power supply  1∮AC220V 5A



    Structure:



    Pneumatic Button / Keystroke Durability Tester, Lifespan Tester LCD Controller 0



    1. Adjust Nut: For adjusting up&down of the test head.

    2. Adjust screw:driving the test head moving.

    3. Test holder: hold the test head supports, can move left & right.

    4. Test head:total 20pcs

    5. fixtures:each fixture have 4 adjustable screws to clamp the sample, with side control cylinder supports.

    6. Control panel: check the description as below;

    7. Precision air pressure adjusting valve & oil-water separator: air inlet-- oil-water separator-- Precision air pressure adjust valve--machine

    8. High precision loadcell: test load value.

    9. Machine leveling feet:4pcs
