Name: High Applicability 50Kgf Dual Station Insertion and Extraction Force Testing Machine
Brand: Infinity Machine
SKU: JIKA5112
Rating: 4.9 (110 reviews)

Rumah Produk Mesin pengujian kekuatan

High Applicability 50Kgf Dual Station Insertion and Extraction Force Testing Machine

Detail produk:

Tempat asal:	Buatan China
Nama merek:	Infinity Machine
Sertifikasi:	CE ISO
Nomor model:	JIKA5112

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Negotiate
Kemasan rincian:	Lembaran bening + spons + karton kayu
Waktu pengiriman:	20-30 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	200 set per bulan

Kontak

Detil Deskripsi produk

Nama produk:	Mesin Uji Kekuatan Penyisipan Dan Ekstraksi Stasiun Ganda	Model:	JIKA5112
stasiun uji:	2 Slot	Kapasitas sensor nilai gaya:	0.5KN ((50Kgf)
Akurasi Angkatan:	±0,3%	Perjalanan uji maksimal:	150mm
Kekuatan:	Elektronik	Jaminan:	1 tahun

High Applicability 50Kgf Dual Station Insertion and Extraction Force Testing Machine

Model:IF5112

Application:

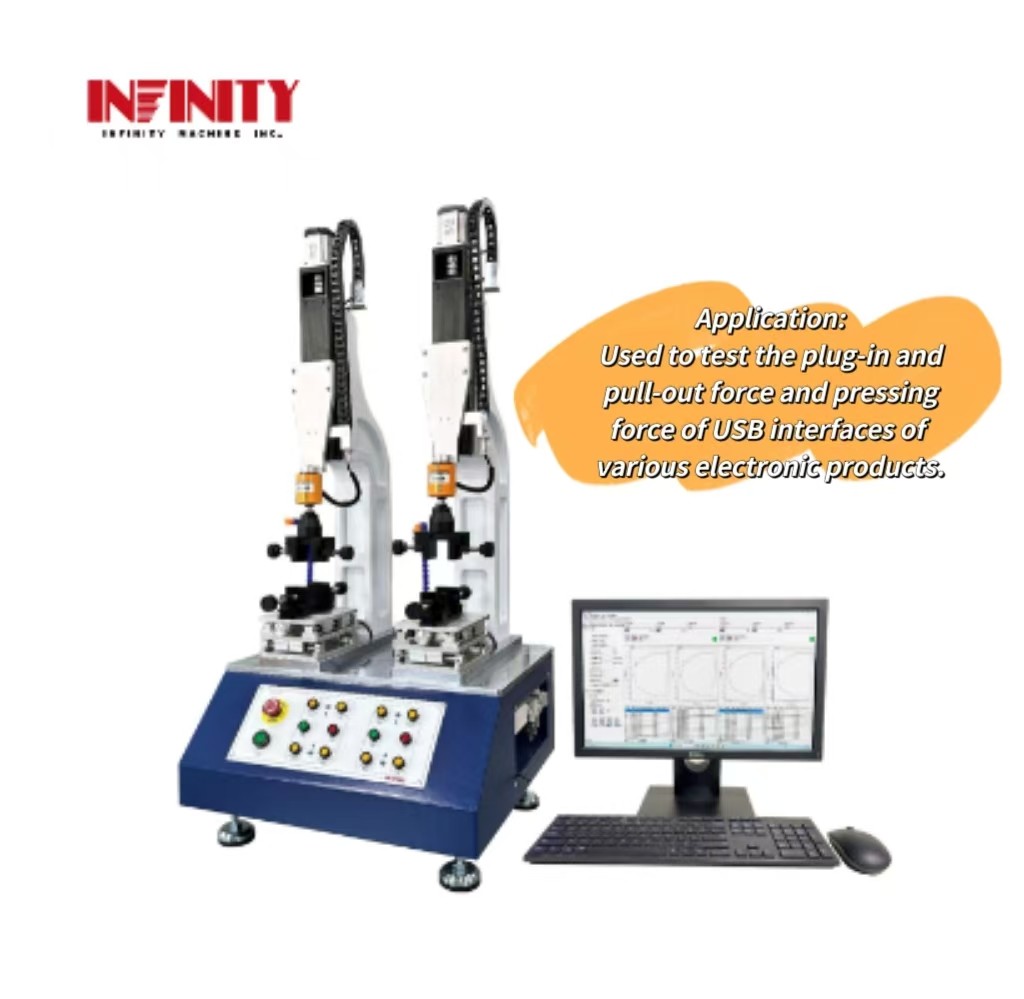

This equipment is used to test the plug-in and pull-out force and pressing force of USB interfaces of various electronic products. The results of the friction force and applied force pressing test during plug-in and pull-out of the interface are obtained to evaluate whether the product meets the manufacturing requirements.

Features:

Real-time display of changes in current force value and displacement, which can display: force-displacement (kgf-mm) or force-time (kgf-time) curves.
The operating interface has three switchable languages: Simplified Chinese/Traditional Chinese/English, and the force value units are switchable in N, Lb, gf, and kgf, which is suitable for global customers.
The open force value protection function sets a protection value based on the conventional testing force.
When the value is exceeded during operation or inching, the movement will automatically stop to reduce damage to equipment and precision samples.
The test method management logic is clear, and the correctness of parameters is checked and error information is provided when creating a new method. Test data is stored in a local database for easy access and query.
The report header content can be modified at any time (in both Chinese and English), the report is automatically generated, no input is required,data reports and curve reports can be printed, and can be exported to Word, Excel, PDF and other format documents.
Meet the independent control and independent testing of two groups of products.

Specification Parameter

Items	Specification
Test station	2Slots

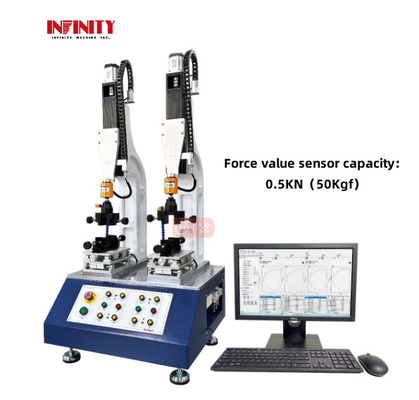

Force value sensor capacity	0.5KN(50Kgf)
Force accuracy	±0.3%
Displacement measurement accuracy	±0.05mm
Displacement resolution	0.001mm
Maximum test travel	150mm
Test speed range	0.1~1200mm/min
Test velocity accuracy	±0.5%
Size (WxDxH)	1426x618x1437mm
Weight	About 185kg
Power supply	AC220V 5A 50Hz

Insertion and withdrawal force curve: Force-displacement (kgf-mm):

Our services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Force Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
