| Tempat asal: | Buatan China |
| Nama merek: | Infinity Machine |
| Sertifikasi: | CE ISO |
| Nomor model: | Seri IE10A |
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | Negotiate |
| Kemasan rincian: | Lembaran bening + spons + karton kayu |
| Waktu pengiriman: | 20-30 hari setelah pesanan dikonfirmasi |
| Syarat-syarat pembayaran: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 200 set per bulan |
| Nama produk: | Ruang Uji Suhu dan Kelembaban Konstan yang Dapat Diprogram | Model: | Seri IE10A |
|---|---|---|---|
| Kisaran suhu: | -70°C +150°C | Rentang kontrol kelembaban: | 20%RH～98%RH |
| Pemegang sampel: | Rak Sampel Stainless Steel 2 Lapis, Tinggi Dapat Disesuaikan, Berat Bantalan 30kg/ Lapis. | Sistem kondensor: | Berpendingin udara |
| Kekuatan: | Elektronik | Jaminan: | 1 tahun |
Low Temperature Programmable Environmental Test for Temperature Humidity Test Chamber
Product model: IE10A series
Equipment Overview:
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".
Range of application:
Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.
Applicable standards:
Specification parameter:
| Model | IE10A150L |
IE10A225L |
IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range |
-70℃ ～ +150℃ |
|||||||||
| Temperature fluctuation |
±0.5℃ |
|||||||||
| Temperature uniformity |
≦2.0℃ |
|||||||||
| Heating rate |
From -70℃ to +100℃ within 90min (No load, ambient temperature +25℃) |
|||||||||
| Temperature decrease rate |
From +20℃ to -70℃ within 90min (No load, ambient temperature +25℃) |
|||||||||
| Humidity control range |
20%R.H～98%R.H |
|||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity |
±3.0％RH (no-load test) |
|||||||||
| Humidity fluctuation |
±1.0％RH |
|||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 |
500x750x600 |
600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outer box size WxHxD(mm) |
720×1500×1270 |
720×1650×1370 |
820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ●Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device |
1 LED lighting device, installed on the window. |
|||||||||
| Sample Holder |
Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. |
|||||||||
| Refrigeration compressor |
France Tecumseh fully closed compressor (2 sets) |
|||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system |
Air-cooled |
|||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater over current protection; Humidifier over current protection; Circulating fan over current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over current protection; Over voltage under inverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||

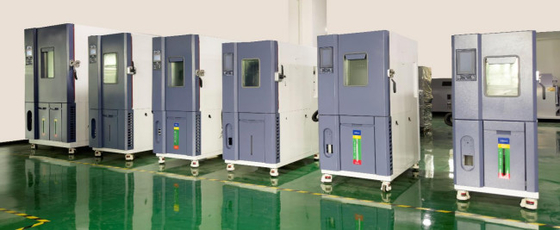

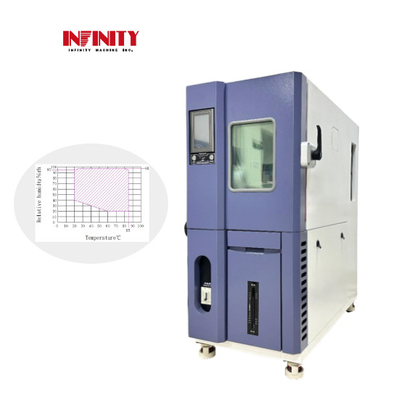

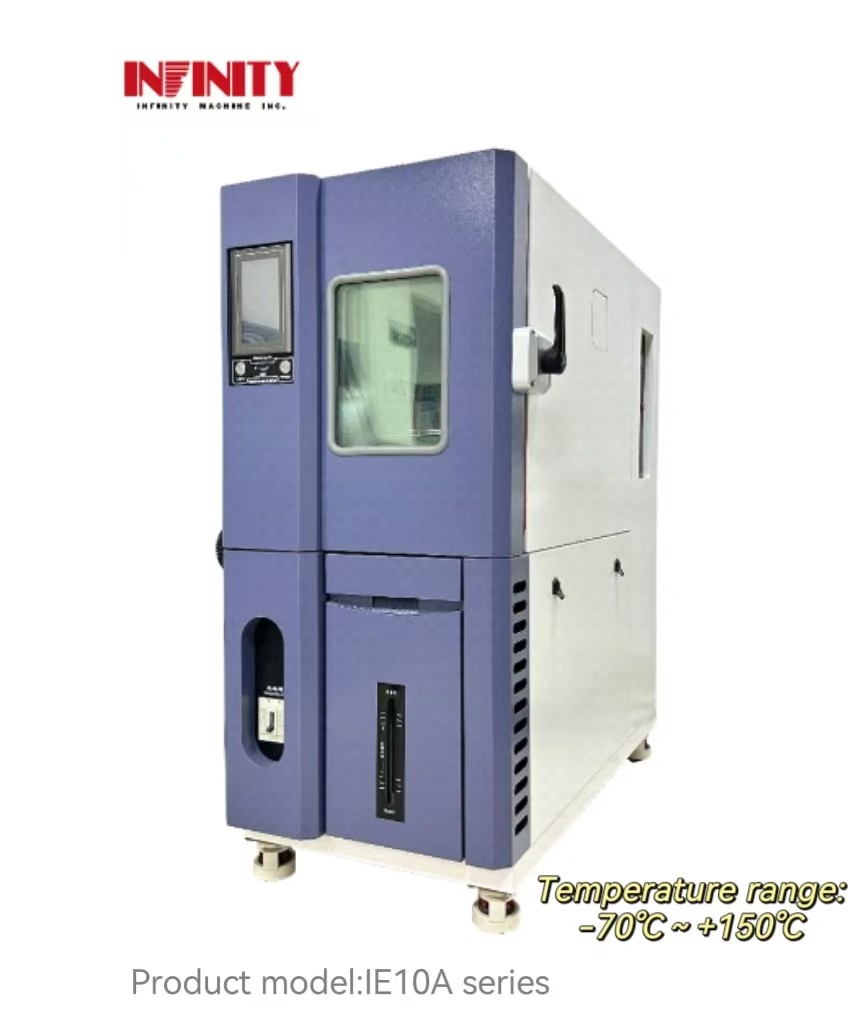

Equipment picture:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
