Name: IEC 60068-2-31/32 Directional Drop Testing Machine for Mobile Device Smartphone Tablet Laptop
Brand: Infinity Machine International Inc.
SKU: ID1200
Price: 100000.00 USD
Availability: InStock

Rumah Produk Mesin Pengujian Drop

IEC 60068-2-31/32 Directional Drop Testing Machine for Mobile Device Smartphone Tablet Laptop

Detail produk:

Tempat asal:	Dibuat di Cina
Nama merek:	Infinity Machine Inc.
Sertifikasi:	ISO
Nomor model:	ID1200

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Negotiate
Kemasan rincian:	Spons+karton kayu
Waktu pengiriman:	35 ~ 40 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	50 set Per Bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Mesin Uji Jatuh Terarah	Model:	ID1200
Aplikasi:	Peralatan ini cocok untuk pengujian penurunan ponsel, komputer tablet, dan berbagai produk elektroni	Fitur:	Mengadopsi Layar Sentuh LCD Warna + PLC untuk Kontrol dan Pengaturan Tindakan. Tinggi drop dapat dia
Standar:	JIS C 0044, IEC 60068-2-31, IEC 60068-2-32	Tinggi drop:	300~2000mm（Atau disesuaikan）
Berat maksimum spesimen yang diperbolehkan:	3kg	Ukuran sampel maksimum diperbolehkan:	Cocok untuk notebook 17 inci, maks. panjang 40cm
Kekuatan:	Elektronik	Jaminan:	1 tahun
Menyoroti:	IEC drop testing machine for smartphones , directional drop tester for tablets , laptop drop testing machine with warranty

IEC 60068-2-31/32 Directional Drop Testing Machine for Mobile Device Smartphone Tablet Laptop

Product Specifications

Attribute	Value
Product name	Directional Drop Testing Machine
Model	ID1200
Application	Suitable for drop testing of mobile phones, tablet computers, and various small consumer electronic products
Standards	JIS C 0044, IEC 60068-2-31, IEC 60068-2-32
Drop height	300~2000mm (or customized)
Maximum weight of specimen allowed	3kg
Maximum sample size allowed	Suitable for 17-inch notebooks, max. length 40cm
Power	Electronic
Warranty	1 Year

Product Description

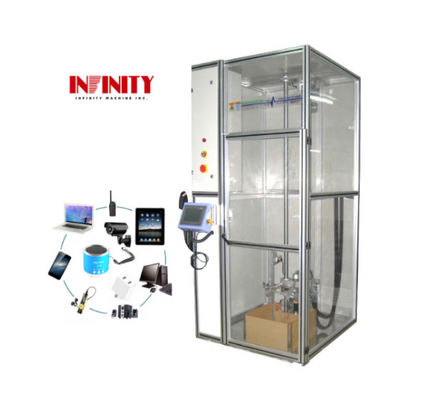

The Directional Drop Testing Machine is designed for precise impact testing of mobile devices, smartphones, tablets, and laptops to evaluate their durability against drops.

Key Features

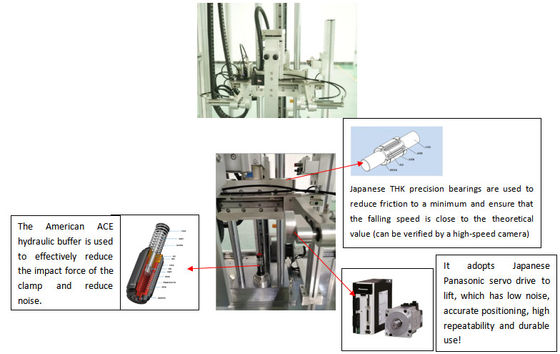

AC servo motor + synchronous belt for accurate height adjustment
Color LCD touch screen + PLC control system for easy operation
Programmable drop height (300-2000mm) with automatic stopping
Preset drop count (1-999,999) with power-off memory function
Multiple drop board options: steel, wood, or marble
Automatic counting function with maintain/fall mode switching
Full protective cover with safety door for operator protection
Software supports up to 999 height compensation formulas

Technical Specifications

Parameter	Specification
Implementation standards	JIS C 0044; IEC 60068-2-32; IEC 60068-2-32
Drop height	300~2000mm (Or customized)
Maximum weight of specimen allowed	3Kg
Maximum sample size allowed	Suitable for 17-inch notebooks, maximum length 40cm
Drop medium	Steel plate, 19mm wooden board, marble plate (or specified)
Sample fixture method	Clamping type
Number of drops	1~999999 (Can be set)
Gas source	≥0.5MPa
Drop acceleration	-5% (Above 0.95G)
Machine size (WxDxH)	1200x1200x2200mm
Machine weight	Around 460kg
Working power supply	AC220V 5A 50Hz
