Name: JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber
Brand: Infinity Machine
SKU: RS-8220A3

Rumah Produk Dampak pengujian mesin

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber

Detail produk:

Tempat asal:	BUATAN CHINA
Nama merek:	Infinity Machine
Sertifikasi:	CE
Model Number:	RS-8220A3

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Negotiable
Packaging Details:	Standard export wooden case with operation manual and video inside.
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Kontak

Detil Deskripsi produk

ketinggian jatuh:	600~1400mm	Cara mengontrol bola ropped:	Kontrol elektromagnetik DC
Berat bola baja:	Standar JIS, Standar GB/T14485 (opsional)	Dimensi:	W720 x D760 x H2000mm
Berat:	210kg	Sumber Daya listrik:	AC220V 50/60Hz 1A atau ditentukan oleh pengguna
Cahaya Tinggi:	penguji ketahanan benturan , peralatan uji benturan , Mesin Uji Dampak JIS K6745

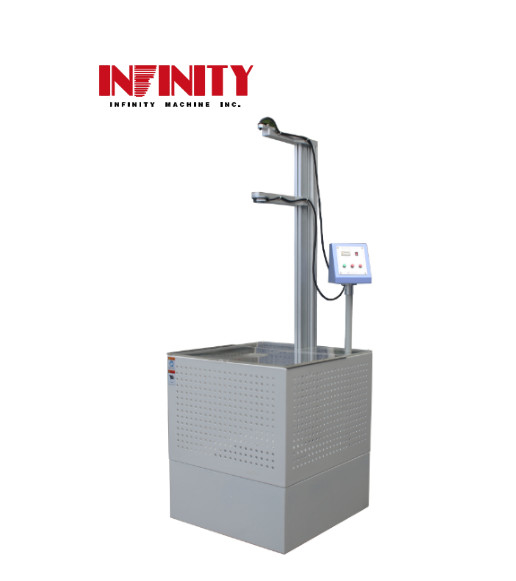

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber

Model: RS-8220A

Application:

This tester is suitable for testing the fastness of plastic, ceramic, acrylic, glass fiber and test coating, etc.

Features:

It adopts DC electromagnet control mode, put the steel ball under the electromagnetic chuck and steel ball is adsorbed automatically; press Drop button, the chuck immediately release steel ball, then steel ball will do free-fall testing to impact specimen surface. Drop height can be adjusted up and down, and with a scale to view the height. And specimen drop height can be known by Infrared mark lamp of impact point.

Key parts of this machine are all quality products with reliable performance, and there are various drop accessories, making your test accurate and effective.

Specification:

Model	RS-8220A
Drop height	600~1400mm
Control way of ropped ball	DC electromagnetic control
Steel ball weight	JIS Standard 112g, 198g, 225g, 357g, 533g, 1042g, 2280g (Standard)
Steel ball weight	Standard GB/T14485: 454g, 761g, 1053g, 1735g (Optional)
Dimension ( WxDxH )	720 x 760 x 2000mm
Weight	210Kg
Power	AC220V 50/60Hz 1A

Package:

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber 0

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber 1

JIS K6745 Impact Testing Machine Fastness Test Plastic / Glass Fiber 2

Label:

Kontak Person: Amy

Tel: +8617318108837
