Name: ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine
Brand: Infinity Machine International Inc.
SKU: Bab 5092
Price: 50,050.00 USD
Availability: InStock

Rumah Produk Mesin Uji Bending

ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine

Detail produk:

Tempat asal:	Dibuat di Tiongkok
Nama merek:	Infinity Machine
Sertifikasi:	ISO
Nomor model:	Bab 5092

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Negotiate
Kemasan rincian:	Lembaran bening + spons + karton kayu
Waktu pengiriman:	35-40 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	200set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Mesin Uji Siklus Fleksibel Kabel	Model:	Bab 5092
Aplikasi:	mesin uji pembengkokan kabel siklik kabel cocok untuk pengujian pembengkokan kabel multi-kabel, kabe	standar tes:	Prosedur Uji Siklus Fleksibel Kabel Multi Konduktor SFF 8417,
Jumlah tes:	2 buah	Kecepatan Tes:	10~60rpm±2cpm (Pengguna sering 13rpm)
Kisaran sudut:	±90° / 0°~180°	Siklus pengujian:	1 ¢ 999,999 kali
Kekuatan:	Fase tunggal AC220V atau 120V±10%, 50/60Hz	Jaminan:	1 Tahun
Menyoroti:	ISO 19642-2 automotive cable tester , multi-core cable bending test machine , flex cyclic testing machine for vehicles

ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines

Model: C5092

Purpose

Road vehicles automotive cables cyclic cable bending test machines are designed for bending testing of multi-wire cables, communication cables, earphone cables, and similar products. The testing method involves short-circuit connecting one end of the cable and fixing it on the rotation plate, applying weight to the cable, then performing left and right rotations to check cable conductivity after specified rotation cycles and evaluate cable quality.

Test Standards

ISO 19642-2 Road vehicles -- Automotive cables -- Part 2: Test methods
ISO 19642-2:2019
ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Specifications

Model	C5092
Test Amount	2 PCS
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (each 2 pcs)
Dimension (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

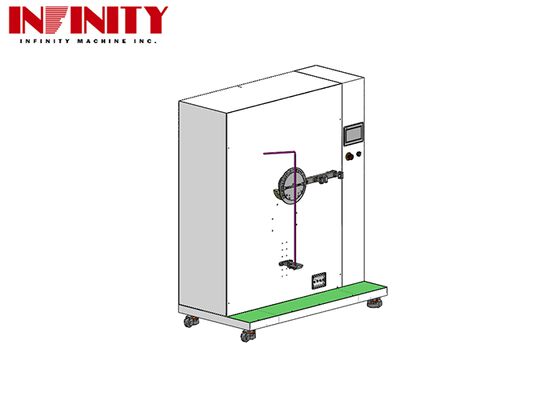

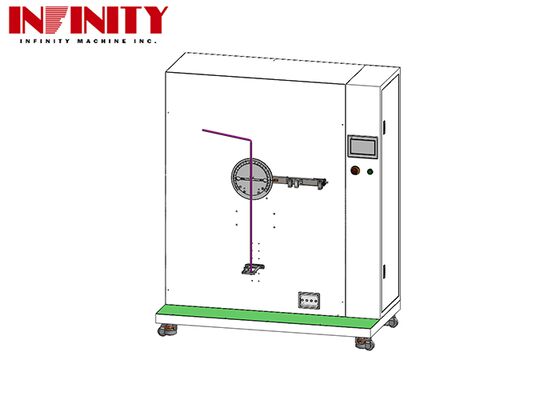

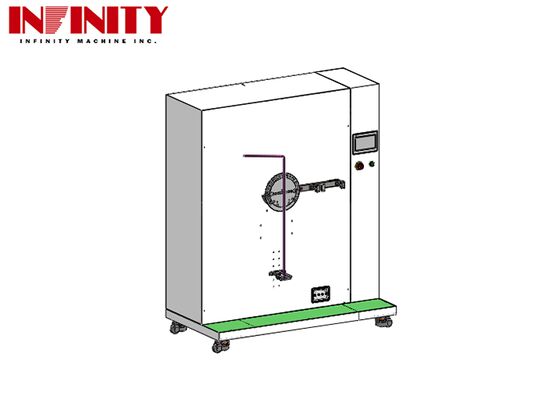

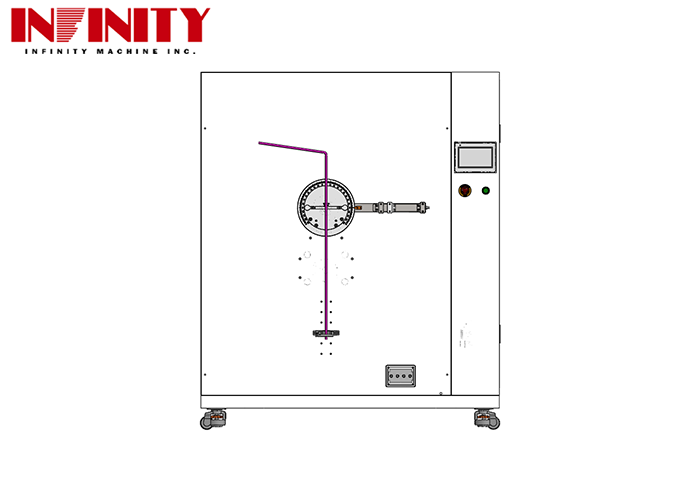

Product Appearance

Packaging and Shipping

Product Packaging:
Automotive cables cyclic bending test machines are securely packaged in wooden crates to prevent damage during transportation. The exterior is clearly labeled with shipping marks for easy identification.

Shipping:
Shipping is handled by reliable, experienced shipping companies to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status throughout the delivery process.

Label:
