Name: ISO 19642-2:2023 Automotive Cable Cyclic Bending Fatigue Tester Cable Cycle Flex Test Machine
Brand: Infinity Machine International Inc.
SKU: Bab 5092
Price: 50,050.00 USD
Availability: InStock

Rumah Produk Mesin Uji Bending

ISO 19642-2:2023 Automotive Cable Cyclic Bending Fatigue Tester Cable Cycle Flex Test Machine

Detail produk:

Tempat asal:	Dibuat di Tiongkok
Nama merek:	Infinity Machine Inc.
Sertifikasi:	ISO
Nomor model:	Bab 5092

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Negotiate
Kemasan rincian:	Lembaran bening + spons + karton kayu
Waktu pengiriman:	35-40 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	50 set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Mesin Uji Bending Siklik Kabel Otomotif	Model:	Bab 5092
Aplikasi:	mesin uji pembengkokan kabel siklik kabel cocok untuk pengujian pembengkokan kabel multi-kabel, kabe	standar tes:	Prosedur Uji Siklus Fleksibel Kabel Multi Konduktor SFF 8417,
Jumlah tes:	2 buah	Kecepatan Tes:	10~60rpm±2cpm (Pengguna sering 13rpm)
Kisaran sudut:	±90° / 0°~180°	Siklus pengujian:	1 ¢ 999,999 kali
Kekuatan:	Fase tunggal AC220V atau 120V±10%, 50/60Hz	Jaminan:	1 Tahun
Menyoroti:	automotive cable bending fatigue tester , cyclic flex test machine ISO 19642-2 , cable cycle bending test machine

ISO 19642-2:2023 Automotive Cable Cyclic Bending Fatigue Tester

Product Overview

The Cable Cycle Flex Test Machine Model C5092 is designed for comprehensive bending fatigue testing of various cable types including multi-conductor cables, communication cables, data cables, robot cables, automotive cables, and earphone wires.

Testing Purpose

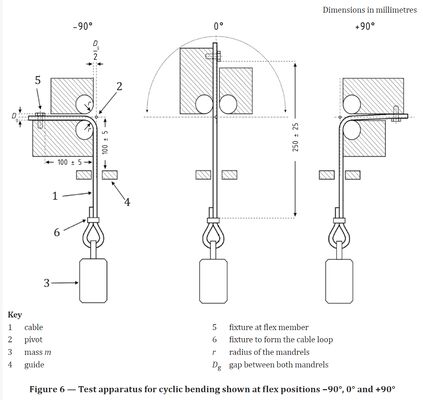

This specialized testing equipment performs cyclic bending evaluations by short-circuit connecting one end of the cable, fixing it on a rotation plate, applying specified weights, and conducting left-right rotation cycles. The system monitors cable conductivity throughout testing to assess durability and quality performance.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019
ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Parameter	Specification
Model	C5092
Test Capacity	2 PCS
Test Speed	10~60rpm±2cpm (Typically 13rpm)
Angle Range	90°
Minimum Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (4 changeable sets)
Rotation Plate Diameter	275mm
Weights	100g, 200g, 500g, 1000g (customizable)
Dimensions (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A (user specified)

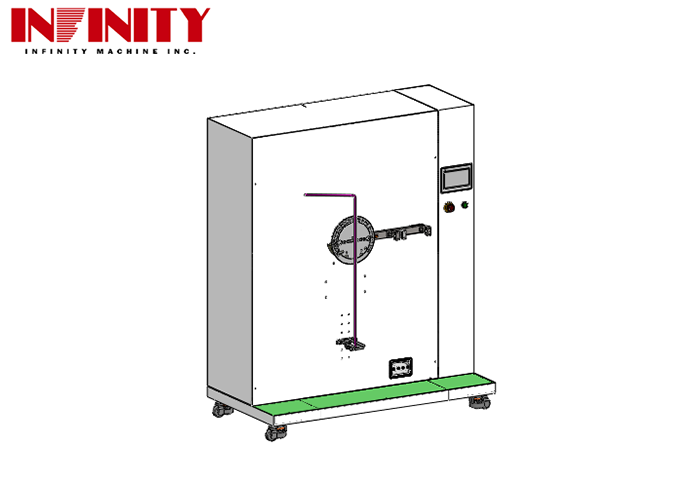

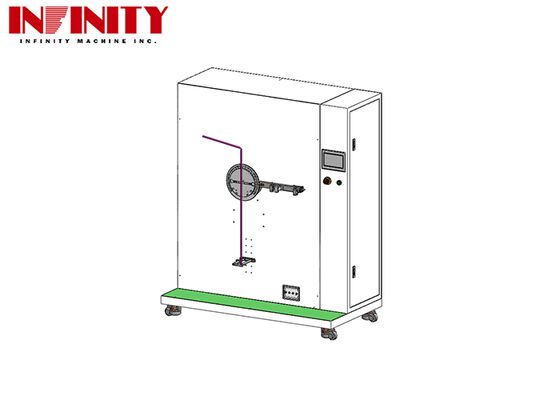

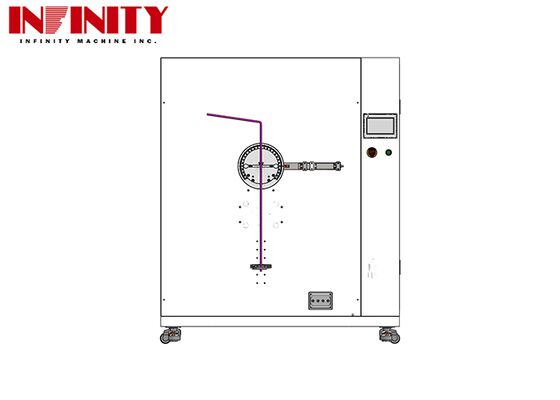

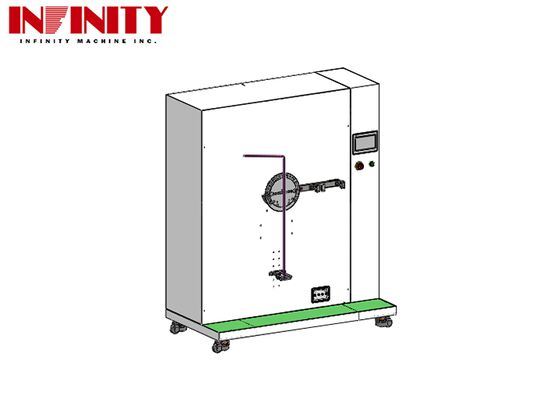

Product Appearance

Packaging & Shipping

Each automotive cable cyclic bending testing machine is securely packaged in protective wooden crates to ensure damage-free transportation. All shipping containers are clearly labeled with identification marks for easy handling.

We partner with reliable shipping companies to manage transportation, ensuring timely delivery and proper handling. Customers receive complete tracking information to monitor shipment status throughout the delivery process.
