Name: Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2
Brand: Infinity Machine International Inc.
SKU: Bab 5092
Price: 50,050.00 USD
Availability: InStock

Rumah Produk Mesin Uji Bending

Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2

Detail produk:

Tempat asal:	Dibuat di Tiongkok
Nama merek:	Infinity Machine Inc.
Sertifikasi:	ISO
Nomor model:	Bab 5092

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Negotiate
Kemasan rincian:	Lembaran bening + spons + karton kayu
Waktu pengiriman:	35-40 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	50 set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Mesin Uji Kelelahan Bending Siklik Kabel	Model:	Bab 5092
Aplikasi:	mesin uji pembengkokan kabel siklik kabel cocok untuk pengujian pembengkokan kabel multi-kabel, kabe	standar tes:	Prosedur Uji Siklus Fleksibel Kabel Multi Konduktor SFF 8417,
Jumlah tes:	2 buah	Kecepatan Tes:	10~60rpm±2cpm (Pengguna sering 13rpm)
Kisaran sudut:	±90° / 0°~180°	Siklus pengujian:	1 ¢ 999,999 kali
Kekuatan:	Fase tunggal AC220V atau 120V±10%, 50/60Hz	Jaminan:	1 Tahun
Menyoroti:	automotive cable bending fatigue tester , cyclic flex tester ISO 19642-2 , cable cycle bending test machine

Automotive Cables Cyclic Bending Fatigue Test Machine

Model: C5092 - Cable Cycle Flex Tester compliant with ISO 19642-2 standards

Purpose and Application

This cyclic bending test machine is designed for evaluating the bending fatigue performance of various cable types including multi-conductor cables, communication cables, data cables, robot cables, automotive cables, and earphone wires.

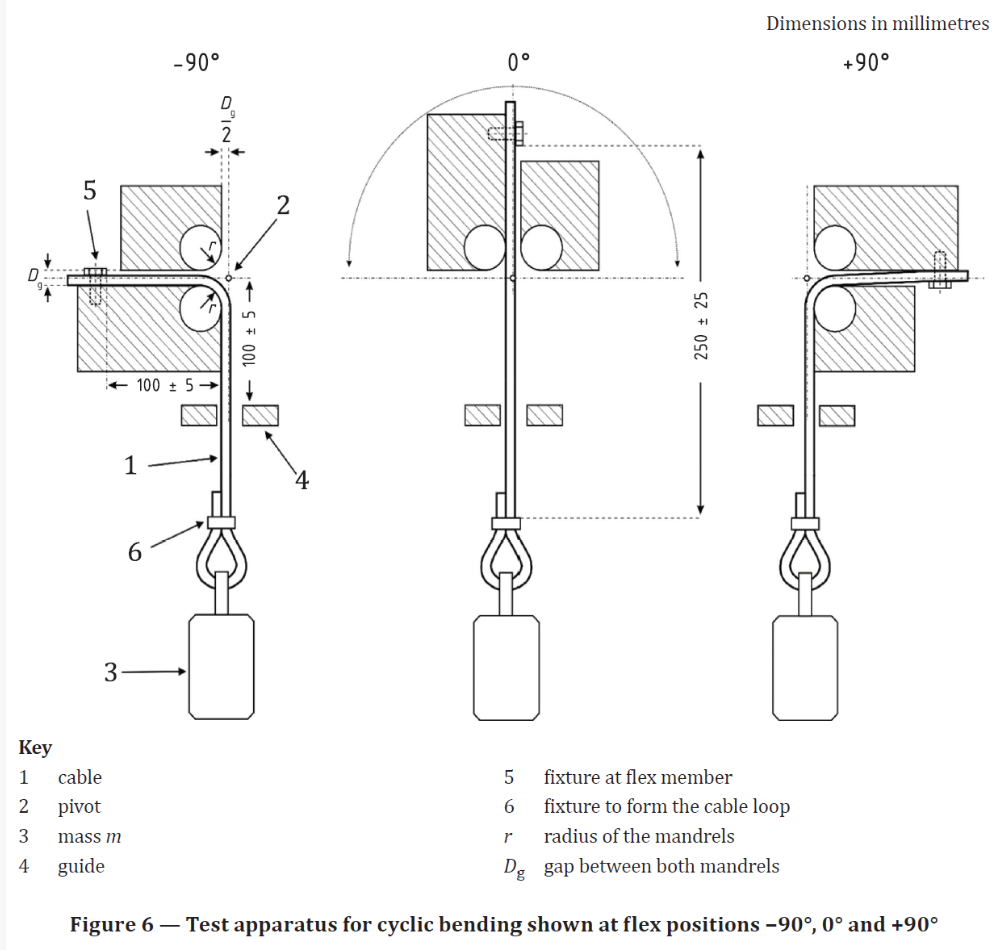

The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019 & ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Parameter	Specification
Model	C5092
Test Amount	2 PCS
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (or customize)
Dimension (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

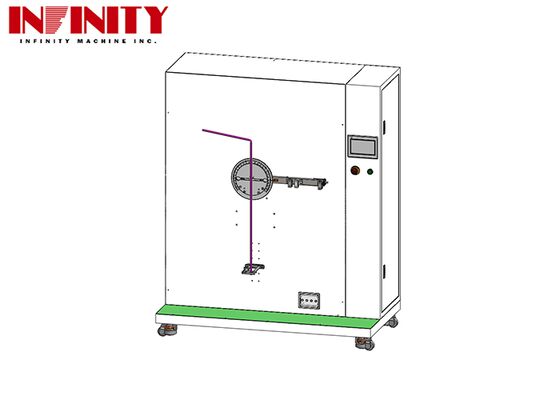

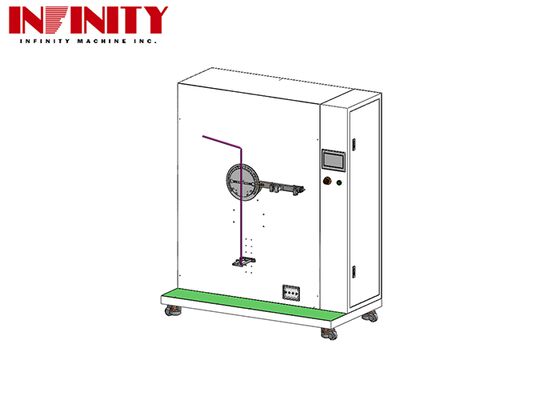

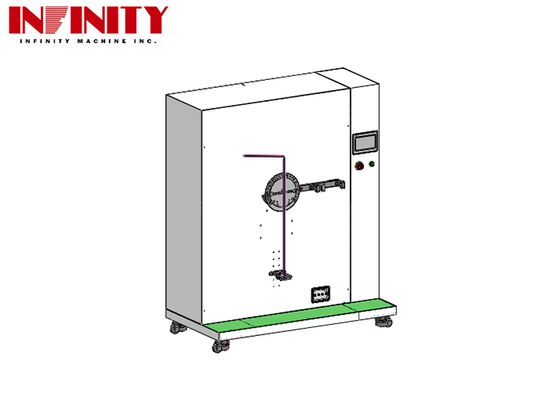

Product Appearance

Packaging and Shipping

Product Packaging: Automotive cables cyclic bending testing machines are securely packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

Shipping: We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
