Name: Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester
Brand: Infinity Machine International Inc.
SKU: Bab 5092
Price: 50,050.00 USD
Availability: InStock

Rumah Produk Mesin Uji Bending

Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester

Detail produk:

Tempat asal:	Dibuat di Tiongkok
Nama merek:	Infinity Machine Inc.
Sertifikasi:	ISO
Nomor model:	Bab 5092

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Negotiate
Kemasan rincian:	Lembaran bening + spons + karton kayu
Waktu pengiriman:	35-40 hari setelah pesanan dikonfirmasi
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	50 set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Mesin Uji Kelelahan Bending Siklik Kabel	Model:	Bab 5092
Aplikasi:	mesin uji pembengkokan kabel siklik kabel cocok untuk pengujian pembengkokan kabel multi-kabel, kabe	standar tes:	Prosedur Uji Siklus Fleksibel Kabel Multi Konduktor SFF 8417,
Jumlah tes:	2 buah	Kecepatan Tes:	10~60rpm±2cpm (Pengguna sering 13rpm)
Kisaran sudut:	±90° / 0°~180°	Siklus pengujian:	1 ¢ 999,999 kali
Kekuatan:	Fase tunggal AC220V atau 120V±10%, 50/60Hz	Jaminan:	1 Tahun
Menyoroti:	ISO 19642-2 compliant wire bending tester , cyclic bending test machine , wire swing left right tester

Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements

Automotive Cables Cyclic Bending Fatigue Test Machine

Model: C5092 - Cable Cycle Flex Tester compliant with ISO 19642-2 standards

Purpose and Application

This cyclic bending test machine evaluates the bending fatigue performance of various cable types including:

Multi-conductor cables
Communication cables
Data cables
Robot cables
Automotive cables
Earphone wires

The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019 & ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Parameter	Specification
Model	C5092
Test Amount	2 PCS
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (or customize)
Dimension (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

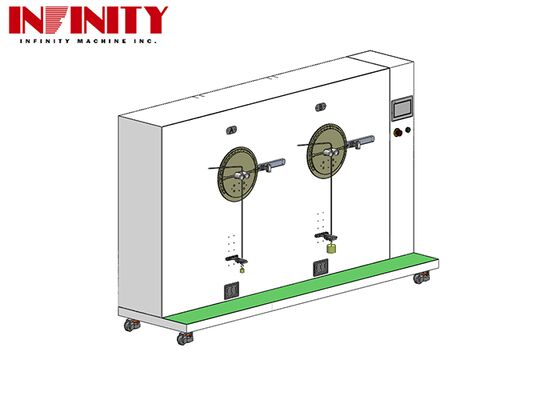

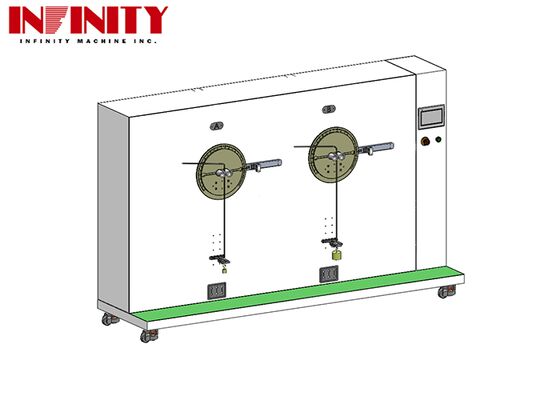

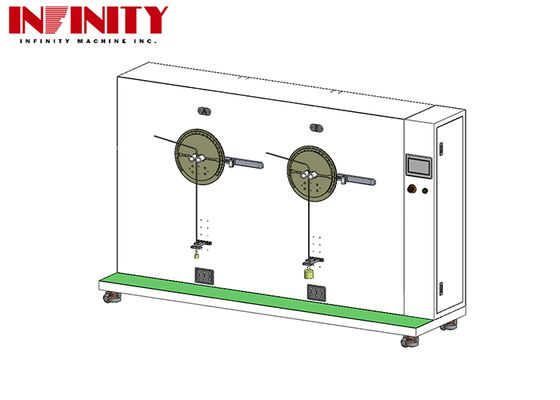

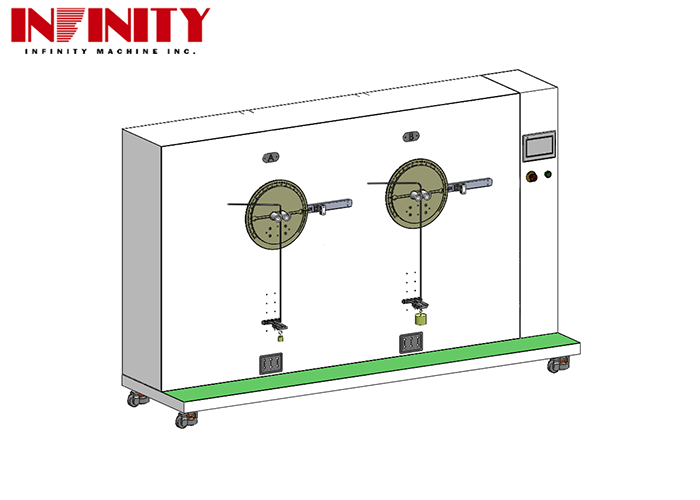

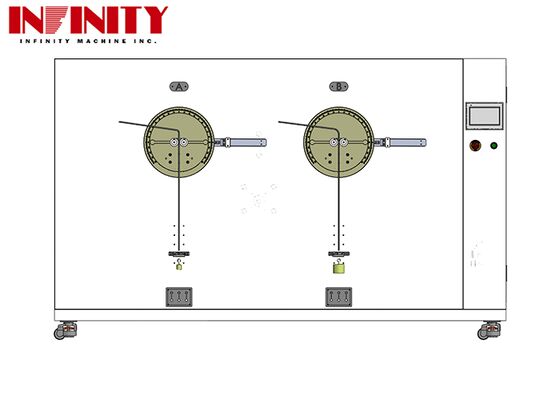

Product Appearance

Packaging and Shipping

Product Packaging

Automotive cables cyclic bending testing machines are securely packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

Shipping

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
