| Tempat asal: | BUATAN CHINA |
| Nama merek: | Infinity Machine |
| Sertifikasi: | CE, ISO |
| Model Number: | RS-8330C-5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Harga: | dapat dinegosiasikan |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Jarak Terukur: | 10mm | Penarikan dan pendaratan manual meja kerja: | 0~100mm |
|---|---|---|---|
| Kecepatan yang diukur: | 1 ~ 81 kali/menit | Menjatuhkan pengaturan waktu: | 0~999999 kali |
| Pengaturan waktu pemutusan: | 0~10 kali | Ukuran mesin: | W1880 × D400 × H1100mm |
| Berat Mesin: | 195kg | Sumber daya listrik: | 1 ′′ 220V 50Hz 5A |
| Menyoroti: | keyboard key tester,force testing machine |
||

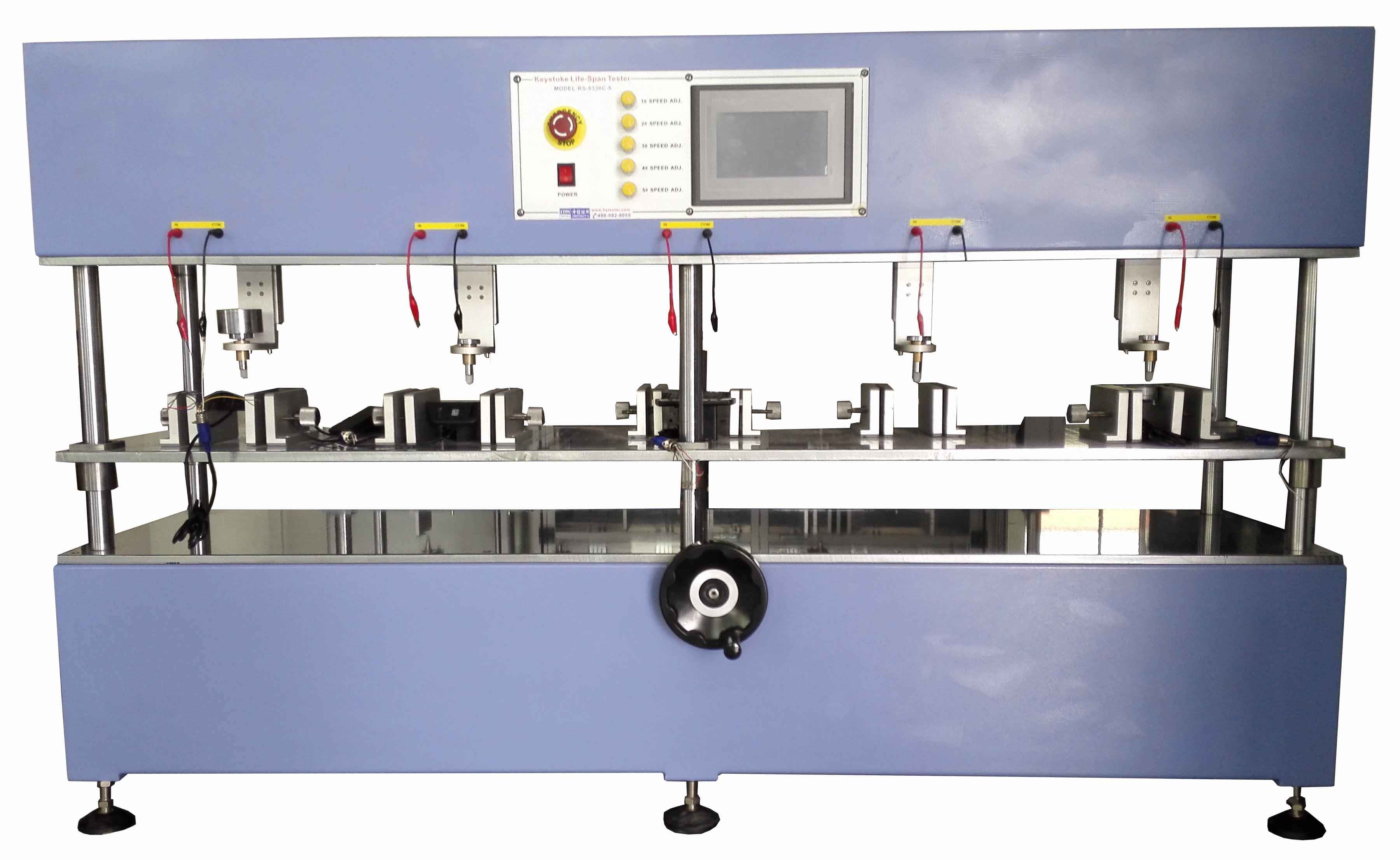

Adjustable Speed Keystoke Life-Span Tester / Tesing Machine Click Fatigue Tests
Model: RS-8330C-5
Purpose:
The machine is applicable for click fatigue tests of various buttons.
Main performance features:
1. The machine is controlled by Kunlun color touch screen and Mitsubishi PLC and the test number and disconnection times can be set up in
touch screen.
2. The machine adopts the governor motor and the reduction gears to test power source and the test speed can be controlled.
3. The machine is equipped with many fixed orifices. The locations of clamps are adjustable. The test board can go up and down and is
suitable for tests of samples in many sizes.
4. The machine is equipped with a USB interface and test data can be derived with a USB flash disk.
Specification:
| Model | RS-8330C-5 |
| Measured distance | 10mm |
| Manual take-off and landing of workbench | 0~100mm |
| Measured speed | 1~81 times/min |
| Dropping time setting | 0~999999 times |
| Disconnection time setting | 0~10 times |
| Machine size | W1880×D400×H1100mm |
| Machine weight | 195kg |
| Power supply | 1∮220V 50Hz 5A |
Testing software:
